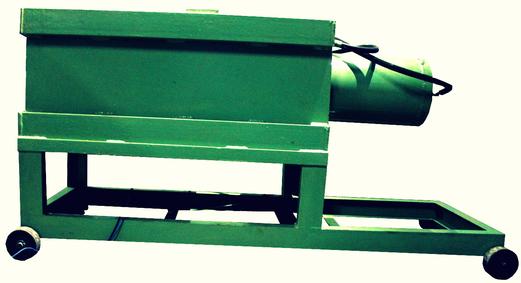

Extrusion Setup - For Aluminium & Magnesium
  • Rigid structure to withstand high pressure
  • Maximum temperature of extrusion furnace: 700 deg. C
  • Maximum pressure: 150 metric tonns, variable
  • Any type die/mould can be manufactured as per the user's requirement.
  • Easy and secure to operate

specifications

  • Desired reinforcements/alloys are mixed to Aluminium/Magnesium and a cast of size 50mm OD x 300mm Long is taken.
  • This cast is placed in the extrusion setup and preheated to the extrusion temperature in this setup.
  • Once the cast reaches the extrusion temperature it is pressed at an high pressure against the die with fixed cross sectional profile to form a different shape.
  • The die can be interchanged to get different cast.
  • Pressure, temperature and other parameters are displayed and controlled by digital controllers.

extrusion - process

  • Complex design casting can be formed
  • Fine grained structure
  • Solidification cracks are reduced to minimum
  • Greater strength due to fine micro-structure
  • Less porosity

benefits of extrusion

The cast obtained from Bottom Pouring Type Stir Casting Furnace can be pressed at high pressure against a die with fixed cross sectional profile to form a different shape.

What is extrusion?

bottom pouring type stir casting furnace with Extrusion setup
