Power Consumption: 240 KW @ 400/440 VAC, 3 Phase, 50Hz with neutral and earth power supply

Platform Size: 2 meter x 1.5 meter

Height of Job that Can be Loaded on the Platform: 2 meter

Height of the Furnace above the Platform: 2.5 meter

Maximum Attainable Temperature: 1150 deg.C

Continuous Operating Temperature: 1100 deg.C

Furnace Lifting/Lowering: By hydraulic

Finish: Powder coated

Temperature Controller

  • Programmable Temperature Controller: Programmable PID based ON/OFF type temperature controller coupled with K type sensor placed at the top of the furnace.
  • Temperature Indicator cum Safety Controller-: PID based ON/OFF type temperature indicator controllers (3 numbers) coupled with K type sensors are provided which will sense and control the temperature at 3 other different places. These controllers will be used as safety controller which will switch OFF the heating if the temperature reaches the set value.Type your paragraph here.

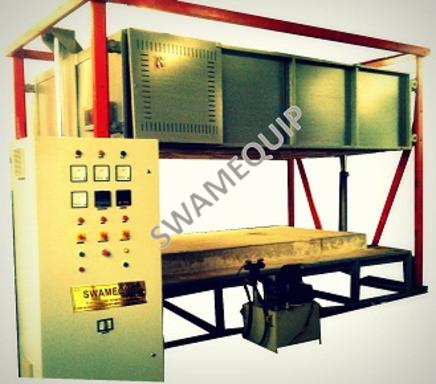

Bell Type Furnace

Bell furnace

industrial furnace

Power Consumption: 20 KW @ 400/440 VAC, 3 Phase, 50Hz with neutral and earth power supply

Zone-1 Temperature: 900 deg.C

Zone-2 Temperature: 1150 deg.C

Zone-3 Temperature: 900 deg.C

Dimensions: Zone-1: 500mm long, Zone-2: 1000mm long, Zone-3: 500mm long, ID - 150mm

Conveyor: Electromechanical conveyor

Controller

  • Programmable Temperature Controller: Programmable PID based ON/OFF type temperature controller coupled with K type sensor placed at the top of the furnace.

swamequipchennai@gmail.com

info@swamequip.in

SwamEquip

Door No.39, Plot No.5, Bajanai Koil 3rd Street, Hasthinapuram,

Chennai, TN 600064

INDIA

Driven through innovation, powered through realisation

Office Address

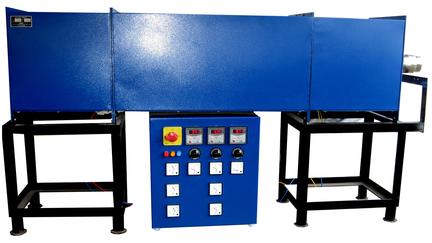

Multi-Zone Bright Annhealing Furnace

bright annealing furnace with conveyor
